Jet Band Saw – JT9-414484

J-7040M-4 10 in. x 16 in. Horizontal Mitering Bandsaw

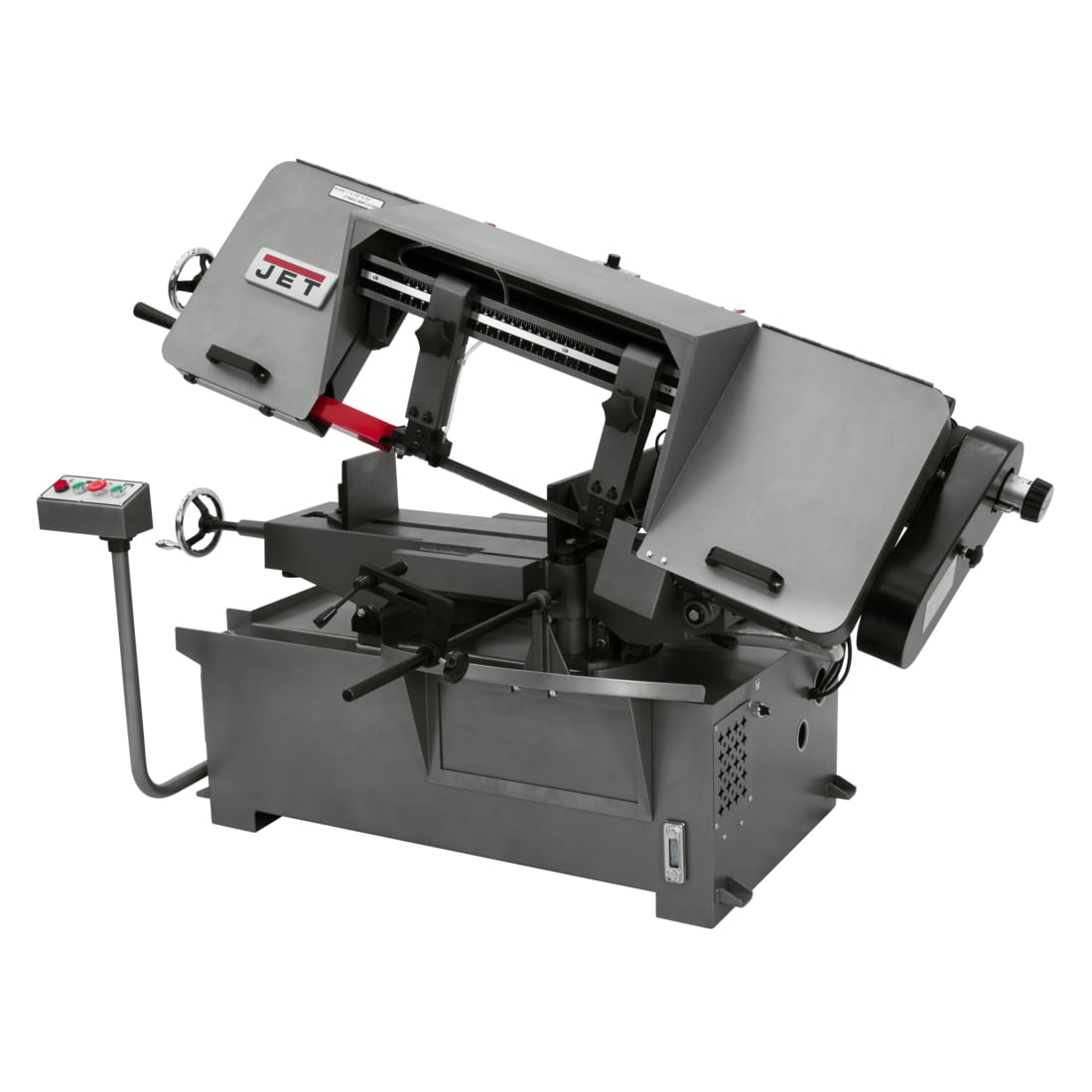

J-7040M-4 10 in. x 16 in. Horizontal Mitering Bandsaw - Image 1

Specs

16 inch
Throat Depth
10 amp
2 hp
Horsepower
94 inch
Maximum Blade Length
3/4 inch
Maximum Blade Width
1/4 inch
Minimum Blade Width
230 volt

Description

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain in the same position while making accurate crosscuts and miters. Backed by the two-year warranty, JET Mitering Bandsaws are built to last and deliver precision results. Key Features: • Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades • Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder • Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath • Mitering head swivels to cut any angle 0 to 45 degrees while the workpiece remains secured • Swing away control panel houses major saw controls • Blade rides on two load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally • Variable-speed drive system • Adjustable material stop
