JET 5-HP Spindle Shaper, 230V 1Ph (Model JWS-35X5-1)

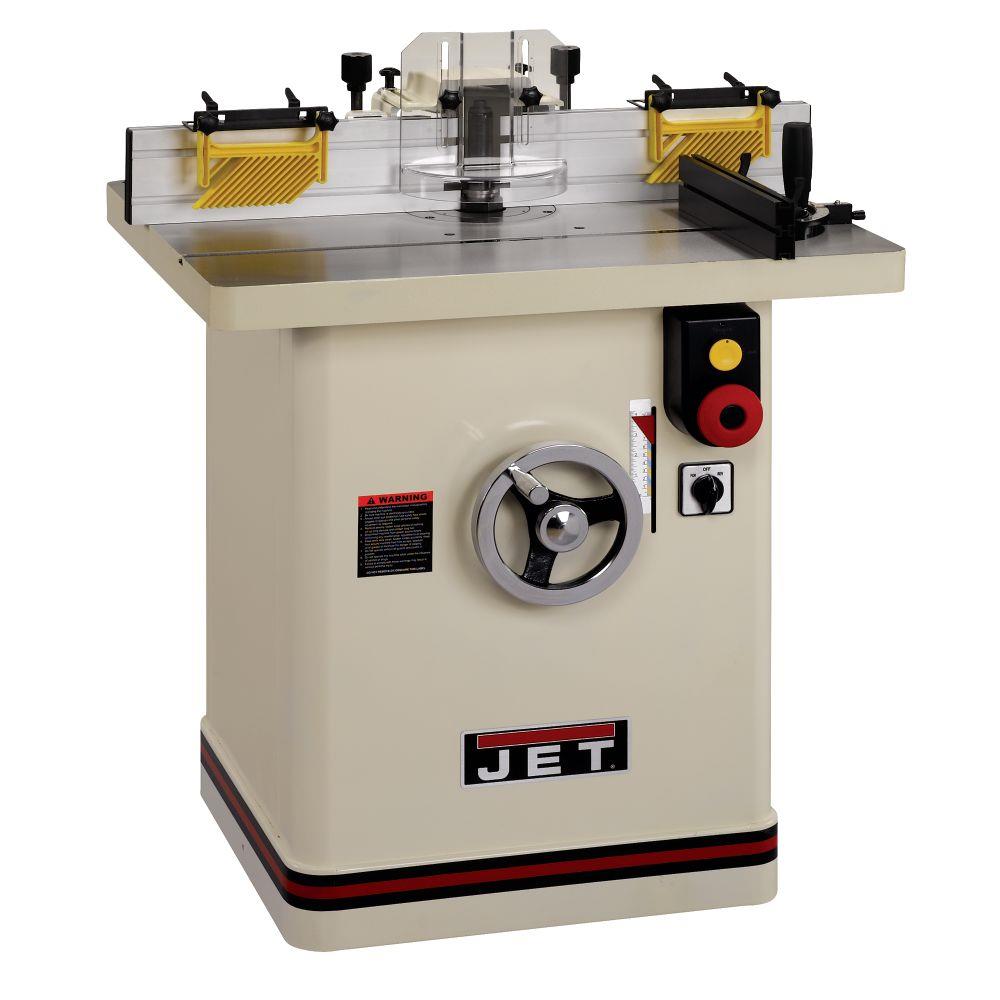

JET 5-HP Spindle Shaper, 230V 1Ph (Model JWS-35X5-1) - Image 1

Specs

5 horsepower
Motor
1/4 inch
Collet Size
1/2 inch
Collet Size
4000–10000 RPM
Variable Speed
26-3/4 x 32-1/4 inch
Table Size

Description

This heavy-duty JET® shaper is available with a powerful 5 HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning. Key Features: • Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters • Powerful 5 HP, 1Ph motor w/magnetic controls • Poly-v-belt transfers maximum power to the spindle • Large 26-3/4 In. x 32-1/4 In. precision ground cast iron table provides a durable work area, pre drilled for power feeder
