Description

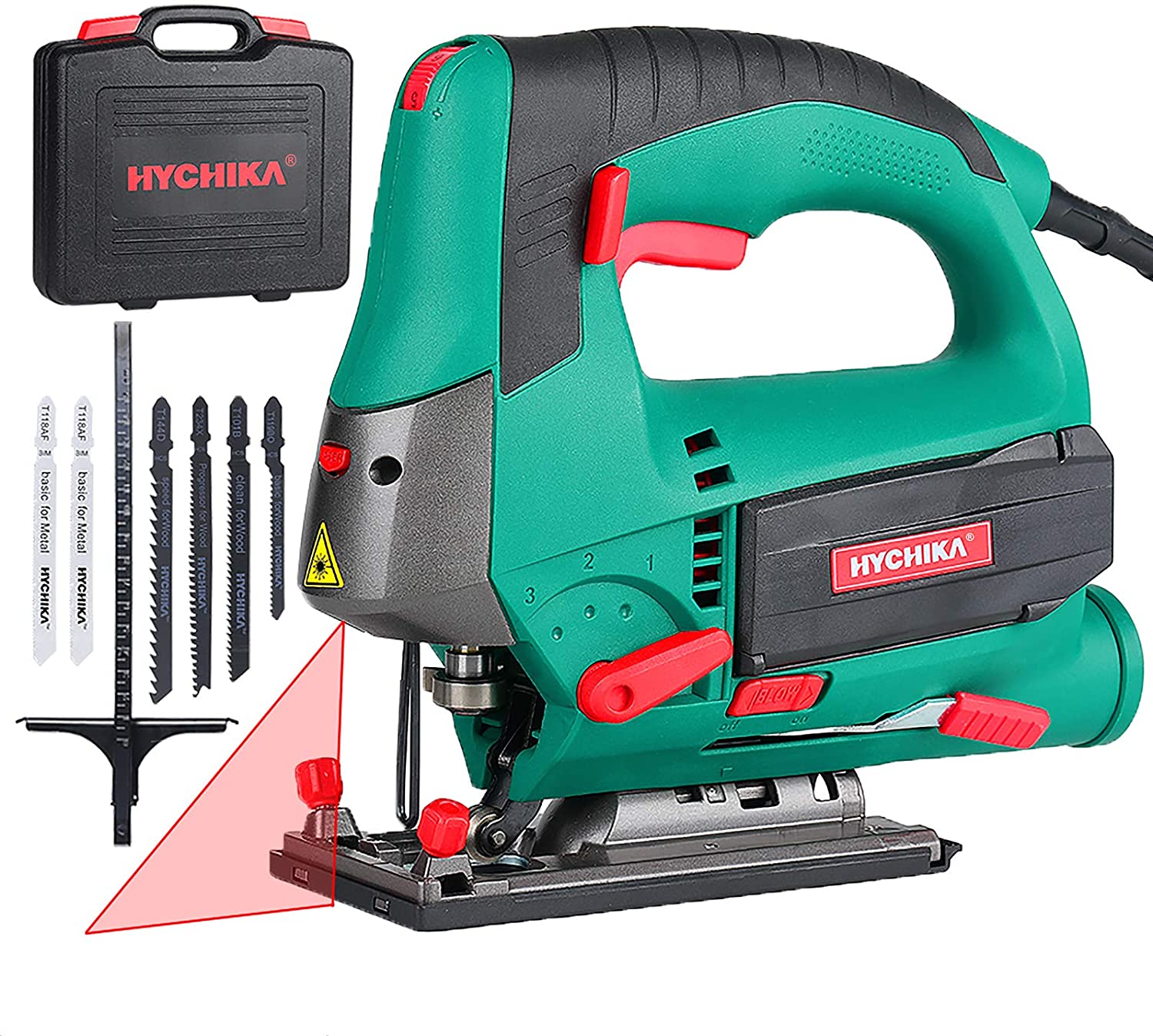

Power jigsaw features a popular 6.7 AMP motor that produces up to 3,000 strokes per minute for higher cutting performance. Ideal for straight, diagonal and curved cuts in plastic, steel, stainless steel, aluminum, wood, plywood and more. Sturdy metal base plate adjusts to ±45° for miter cuts For bevel and bevel cutting, the base can be rotated 45° to both sides after adjusting the bevel adjustment lever. The angles 15°, 30° and 45° are marked but you can adjust the saw to any angle between these markings as required. Speed adjustment The electric jig saw speed can be set with the knob up on the tool. There are six different speeds. Position 1 sets the lowest speed, and position 6 the highest. Hold the handle and turn the speed control to the required position with your thumb. Setting the Pendulum For soft materials (wood, plastic etc.) set the oscillation to position 2 or 3. For sharp-edged cuts, set the oscillation to position 0 or 1. For medium-hard materials (hard wood, aluminum etc.) set the oscillation to a suitable position for the application. For thin workpiece, set the oscillation to position 0 or 1. For hard materials (steel etc.) set the oscillation to position 0. For round cuts, set the oscillation to position 0. 800W MOTOR and 6 ADJUSTABLE SETTINGS: The 800W pure copper motor has great power of 800-3000SPM speed, and with six speed levels you can adjust; With 6pc blades, you can choose different saw blades according to the material (2 for metal and aluminum, 4 for wood and plastic plate). ADJUSTABLE CUTTING ANGLE and 0-3 ORBITAL SETS: The maximum adjustable cutting angle is -45 ° to 45 °, and the maximum cutting depth in the wood is 110 mm, in the metal 10 mm, so that different cutting angles can be set. Also with 0-3 for lifting knives, suitable for various cutting materials. The higher the gear position, the faster the cutting speed, suitable for softer materials. The lower the gear position, the slower the cutting speed, for harder materials. QUIK CHUCK and STORAGE BOX FOR BLADES: With the quick release chuck, you can change the saw blades quickly without tools; On both sides of the jig saw are the magnetic blade storage box, they are good for storage of saw blades. LASER GUIDE and SCALE RULER: Built in laser guide for the cutting direction and make the cutting precision; with guide ruler for guiding and controlling the cutting width; with lock-on button holds the trigger in place to avoid keeping finger engaged during long jobs. NOTICE: The bottom plate should be close to the cutting when cutting. DELIVERY CONTENTS: 1 x HYCHIKA jig saw; 6 x T-shank blades; 1 x guide ruler; 1 x user manual
